KF NW Blank Flanges
KF NW Blank Flanges
KF NW 10-160 Blank Flanges

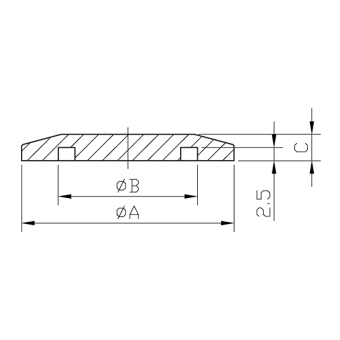

KF NW Blank Flange
‧材質： Stainless Steel / S.S.304
Part Number
Model Size
A
B
C
我要詢價
KF10B
KF NW 10
30
1.180
12.2
0.481
5
0.197
KF16B
KF NW 16
30
1.180
17.2
0.680
5
0.197
KF25B
KF NW 25
40
1.570
26.2
1.032
5
0.197
KF40B
KF NW 40
55
2.160
41.2
1.623
5
0.197
KF50B
KF NW 50
75
2.950
52.2
2.055
5
0.197
KF63B
KF NW 63
87
3.425
70
2.756
5
0.197
KF80B
KF NW 80
114
4.488
83
3.268
11
0.433
KF100B
KF NW 100
134
5.276
102
4.016
11
0.433
KF160B
KF NW 160
190
7.480
153
6.024
11
0.433
注意:
‧如無特別標示單位, 所有尺寸皆為
公制 (mm)
.
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
