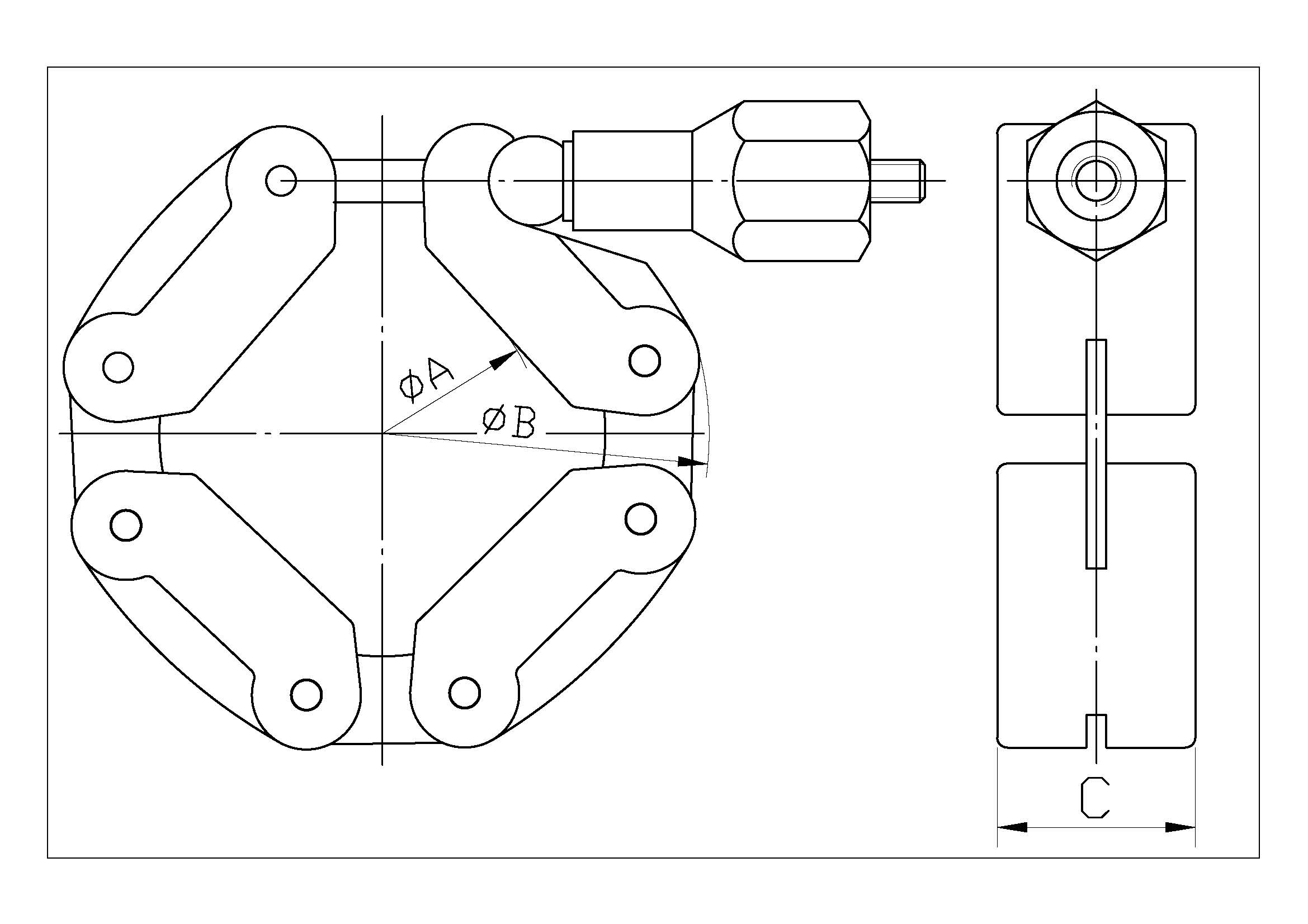

KF NW 10-63 Chain Clamp (SUS 304)
KF NW Chain Clamp (SUS 304)
KF NW Chain Clamp (SUS 304)
‧材質： Stainless Steel / S.S.304
Part Number
Model Size
A
B
C
我要詢價
KF16CCSSSN
KF16
22
0.866
56
2.205
20.5
0.807
KF25CCSSSN
KF25
32
1.260
66
2.598
20.5
0.807
KF40CCSSSN
KF40
46
1.811
80
3.150
20.5
0.807
KF50CCSSSN
KF50
69
2.717
100
3.937
20.5
0.807
KF63CCSSSN
KF63
78
3.071
112
4.409
20.5
0.807
KF80CCSSSN
KF80
108
4.252
138.5
5.453
20.5
0.807
注意:
‧如無特別標示單位, 所有尺寸皆為
公制 (mm)
.
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
