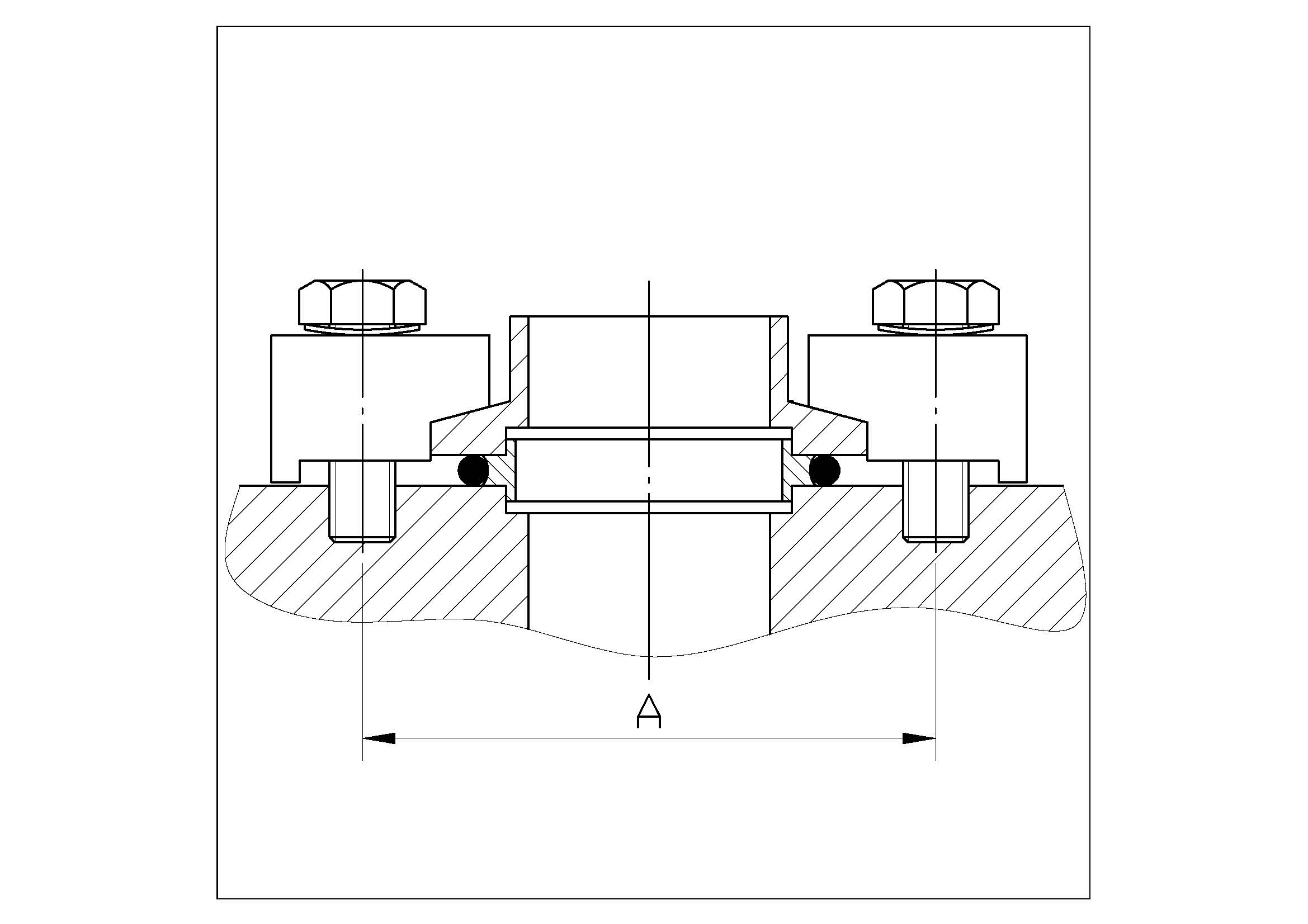

KF NW 10-50 Single Bulkhead Claw Clamp Kit (AL)
KF NW 10-50 Single Bulkhead Claw Clamp Kit (AL)
‧材質： Aluminum
Part Number
Model Size
Flange Size
Bolt
Quantity
A
我要詢價
KF16SBCCKAL
KF NW 10/16
KF10/16
KF10/16
M6*20
M6*20
3
3
43
1.693
KF25SBCCKAL
KF NW 25
KF25
KF25
M6*20
M6*20
4
4
53
2.087
KF40SBCCKAL
KF NW 40
KF40
KF40
M6*20
M6*20
4
4
68
2.677
KF50SBCCKAL
KF NW 50
KF50
KF50
M6*20
M6*20
6
6
88
3.465
注意:
‧如無特別標示單位, 所有尺寸皆為
公制 (mm)
.
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
