KF NW Thread Adaptor
KF NW 16-40 Male Thread Adaptor
KF NW Male Thread Adaptor

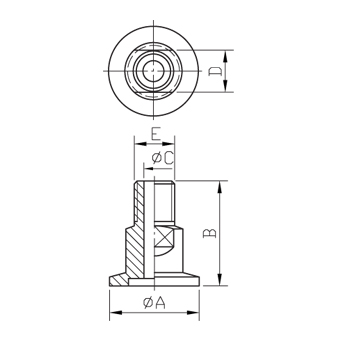

KF NW Male Thread Adaptor
‧材質： Stainless Steel / S.S.304
Part Number
Model Size
A
B
C
D
E (Thread Type)
我要詢價
KF16MPT3
KF NW 16
30
1.181
35
1.378
4.7
0.185
10
0.394
PT1/8”
PT1/8”
KF16MPT6
30
1.181
35
1.378
7.1
0.280
14
0.551
PT1/4”
PT1/4”
KF25MPT6
KF NW 25
40
1.575
35
1.378
7.1
0.280
14
0.551
PT1/4”
PT1/4”
KF40MPT6
KF NW 40
55
2.165
35
1.378
7.1
0.280
14
0.551
PT1/4”
PT1/4”
KF40MPT13
55
2.165
40
1.575
11.9
0.469
22
0.866
PT1/2”
PT1/2”
KF16MNPT3
KF NW 16
30
1.181
35
1.378
4.7
0.185
10
0.394
NPT1/8”
NPT1/8”
KF16MNPT6
30
1.181
35
1.378
7.1
0.280
14
0.551
NPT1/4”
NPT1/4”
KF25MPT13
KF NW 25
40
1.575
40
1.575
11.9
0.469
22
0.866
PT1/2”
PT1/2”
KF25MNPT6
40
1.575
35
1.378
7.1
0.280
14
0.551
NPT1/4”
NPT1/4”
KF25MNPT13
40
1.575
40
1.575
11.9
0.469
22
0.866
NPT1/2”
NPT1/2”
KF40MNPT6
KF NW 40
55
2.165
35
1.378
7.1
0.280
14
0.551
NPT1/4”
NPT1/4”
KF40MNPT13
55
2.165
40
1.575
11.9
0.469
22
0.866
NPT1/2”
NPT1/2”
注意:
‧如無特別標示單位, 所有尺寸皆為
公制 (mm)
.
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
