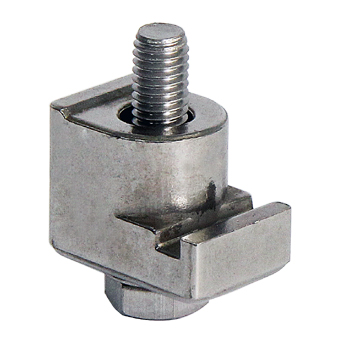

ISO Single Claw Clamps
ISO 63-500 Single Claw Clamps
ISO Single Claw Clamps
ISO Single Claw Clamps
ISO Single Claw Clamps
‧材質： Stainless Steel / S.S.304 / Aluminum / Steel + Zc Plated

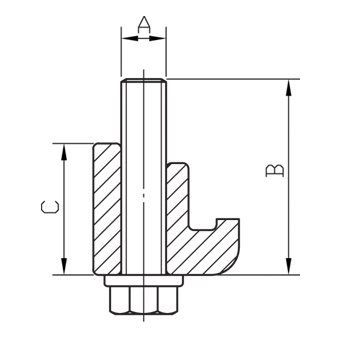

Part Number
Model Size
Material
A
B
C
我要詢價
ISO63100SCCAL
ISO 63 80 100
Aluminum
Aluminum
M8
M8
35
1.378
23.5
0.925
ISO63100SCCSS
S.S. 304
S.S. 304
M8
M8
35
1.378
23
0.906
ISO63100SCCZP
Steel + Zc Plated
Steel + Zc Plated
M8
M8
35
1.378
23
0.906
ISO160250SCCAL
ISO 160 200 250
Aluminum
Aluminum
M10
M10
35
1.378
23.5
0.925
ISO160250SCCSS
S.S. 304
S.S. 304
M10
M10
35
1.378
23
0.906
ISO160250SCCZP
Steel + Zc Plated
Steel + Zc Plated
M10
M10
35
1.378
23
0.906
ISO320500SCCAL
ISO 320 400 500
Aluminum
Aluminum
M12
M12
50
1.969
30
1.181
ISO320500SCCSS
S.S. 304
S.S. 304
M12
M12
50
1.969
30
1.181
ISO320500SCCZP
Steel + Zc Plated
Steel + Zc Plated
M12
M12
50
1.969
30
1.181
ISO630SCCSS
ISO 630
S.S. 304
S.S. 304
M12
M12
60
2.362
41.5
1.634
ISO630SCCZP
Steel + Zc Plated
Steel + Zc Plated
M12
M12
60
2.362
41.5
1.634
注意:
‧如無特別標示單位, 所有尺寸皆為
公制 (mm)
.
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
