CR Blank Flanges

CR 16-350 (Conflat Flange) Blank Flange-Rotatable with Tapped Bolt Holes

CR (Conflat Flange) Blank-Rotatable / Tapped Bolt Holes

‧材質： Stainless Steel / S.S.304

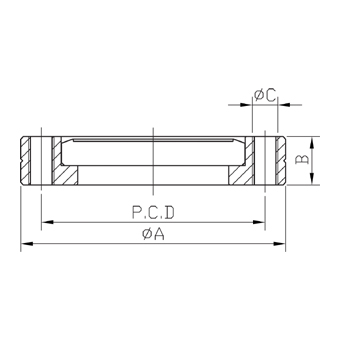

Part Number	Model Size	A	B	C*No. Tapped Bolt Holes	P.C.D	我要詢價
CR16BT	1 -1/3" (CR 16)	33.8 1.331	7.5 0.295	M46 8-32UNC6	26.9 1.059
CR35BT	2-3/4" (CR 35)	69.5 2.736	12.7 0.500	M66 1/4-28UNF6	58.7 2.311
CR63BT	4-1/2" (CR 63)	113.6 4.472	18 0.709	M88 5/16-24UNF8	92.1 3.626
CR100BT	6" (CR 100)	151.6 5.969	20 0.787	M816 5/16-24UNF16	130.3 5.130
CR150BT	8" (CR 150)	202.5 7.972	22 0.866	M820 5/16-24UNF20	181 7.126
CR200BT	10" (CR 200)	253.2 9.969	24.7 0.972	M824 5/16-24UNF24	231.8 9.126
CR250BT	13-1/4" (CR 250)	336.5 13.248	28.5 1.122	M1030 3/8-24UNF30	306.5 12.067
CR300BT	14" (CR 300)	355.6 14.000	28.5 1.122	M1030 3/8-24UNF30	325.7 12.823
CR350BT	16-1/2" (CR 350)	419.1 16.500	28.5 1.122	M1036 3/8-24UNF36	388.9 15.311

注意:
‧如無特別標示單位, 所有尺寸皆為公制 (mm).
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
