CR 16-350 (Conflat Flange) Bored Flange-Rotatable with Tapped Bolt Holes

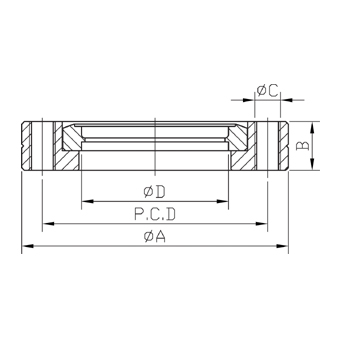

CR (Conflat Flange) Bored-Rotatable / Tapped Bolt Holes
CR (Conflat Flange) Bored-Rotatable / Tapped Bolt Holes
‧材質： Stainless Steel / S.S.304
Part Number
Model Size
A
B
C*No.
Tapped Bolt Holes
D
P.C.D
我要詢價
CR16B19T
1-1/3" (CF 16)
33.8
1.331
7.5
0.295
4.4*6
8-32UNC*6
19.3
0.760
26.9
1.059
CR35B38T
2-3/4" (CR 35)
69.5
2.736
12.7
0.500
6.7*6
1/4-28UNF*6
38.3
1.508
58.7
2.311
CR35B43T
69.5
2.736
12.7
0.500
6.7*6
1/4-28UNF*6
42.9
1.689
58.7
2.311
CR63B64T
4-1/2" (CR 63)
113.6
4.472
18
0.709
8.4*8
5/16-24UNF*8
63.7
2.508
92.1
3.626
CR100B102T
6" (CR 100)
151.6
5.969
20
0.787
8.4*16
5/16-24UNF*16
101.8
4.008
130.3
5.130
CR150B153T
8" (CR 150)
202.5
7.972
22
0.866
8.4*20
5/16-24UNF*20
152.8
6.016
181
7.126
CR200B204T
10" (CR 200)
253.2
9.969
24.7
0.972
8.4*24
5/16-24UNF*24
203.7
8.020
231.8
9.126
CR250B254T
13-1/4" (CR 250)
336.5
13.248
28.5
1.122
10.3*30
3/8-24UNF*30
254.5
10.020
306.5
12.067
CR300B305T
14" (CR 300)
355.6
14.000
28.5
1.122
10.3*30
3/8-24UNF*30
305.4
12.024
325.7
12.823
CR350B356T
16-1/2" (CR 350)
419.1
16.500
28.5
1.122
10.3*36
3/8-24UNF*36
356.1
14.020
388.9
15.311
注意:
‧如無特別標示單位, 所有尺寸皆為
公制 (mm)
.
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
