Centering Ring (AL) & Viton O-Ring

KF NW 10-50, ISO 63-500 Centering Ring (AL) with Viton O-Ring

Centering Ring (AL) / Viton O-Ring

‧材質： Aluminum / Viton

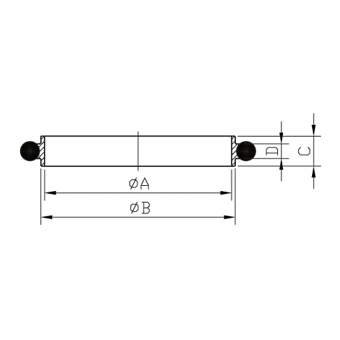

Part Number	Model Size	C/R Material	O’Ring Material	O’Ring Size	A	B	C	D	Type	我要詢價
KF10ACV	KF NW 10	Aluminum Aluminum	Viton Viton	AS-311 AS-311	10 0.394	12 0.472	8 0.315	3.9 0.154
KF16ACV	KF NW 16	Aluminum Aluminum	Viton Viton	AS-314 AS-314	16 0.630	17 0.669	8 0.315	3.9 0.154
KF25ACV	KF NW 25	Aluminum Aluminum	Viton Viton	AS-320 AS-320	25 0.984	26 1.024	8 0.315	3.9 0.154
KF40ACV	KF NW 40	Aluminum Aluminum	Viton Viton	AS-326 AS-326	40 1.575	41 1.614	8 0.315	3.9 0.154
KF50ACV	KF NW 50	Aluminum Aluminum	Viton Viton	AS-330 AS-330	50 1.969	52 2.047	8 0.315	3.9 0.154
ISO63ACVA	ISO 63	Aluminum Aluminum	Viton Viton	AS-337 AS-337	67 2.638	69.6 2.740	8 0.315	3.9 0.154	U.S.A U.S.A
ISO63ACVE	ISO 63	Aluminum Aluminum	Viton Viton	AS-337 AS-337	68 2.677	70 2.756	8 0.315	3.9 0.154	Europe Europe
ISO80ACVA	ISO 80	Aluminum Aluminum	Viton Viton	AS-341 AS-341	80 3.150	82.6 3.252	8 0.315	3.9 0.154	U.S.A U.S.A
ISO80ACVE	ISO 80	Aluminum Aluminum	Viton Viton	AS-341 AS-341	81 3.189	83 3.268	8 0.315	3.9 0.154	Europe Europe
ISO100ACVA	ISO 100	Aluminum Aluminum	Viton Viton	AS-347 AS-347	100 3.937	101.6 4.000	8 0.315	3.9 0.154	U.S.A U.S.A
ISO100ACVE	ISO 100	Aluminum Aluminum	Viton Viton	AS-347 AS-347	100 3.937	102 4.016	8 0.315	3.9 0.154	Europe Europe
ISO160ACVA	ISO 160	Aluminum Aluminum	Viton Viton	AS-362 AS-362	150 5.906	152.6 6.008	8 0.315	3.9 0.154	U.S.A U.S.A
ISO160ACVE	ISO 160	Aluminum Aluminum	Viton Viton	AS-362 AS-362	148 5.827	153 6.024	8 0.315	3.9 0.154	Europe Europe
ISO200ACVA	ISO 200	Aluminum Aluminum	Viton Viton	AS-371 AS-371	210 8.268	212.6 8.370	8 0.315	3.9 0.154	U.S.A U.S.A
ISO200ACVE	ISO 200	Aluminum Aluminum	Viton Viton	AS-371 AS-371	210 8.268	213 8.386	8 0.315	3.9 0.154	Europe Europe
ISO250ACVA	ISO 250	Aluminum Aluminum	Viton Viton	AS-378 AS-378	257.5 10.138	260.4 10.252	8 0.315	3.9 0.154	U.S.A U.S.A
ISO250ACVE	ISO 250	Aluminum Aluminum	Viton Viton	AS-378 AS-378	257.5 10.138	261 10.276	8 0.315	3.9 0.154	Europe Europe
ISO320ACVA	ISO 320	Aluminum Aluminum	Viton Viton	AS-454 AS-454	312 12.283	318.3 12.531	12 0.472	5.6 0.220	U.S.A U.S.A
ISO320ACVE	ISO 320	Aluminum Aluminum	Viton Viton	AS-454 AS-454	312 12.283	318 12.520	12 0.472	5.6 0.220	Europe Europe
ISO400ACVA	ISO 400	Aluminum Aluminum	Viton Viton	AS-461 AS-461	394 15.512	399.2 15.717	12 0.472	5.6 0.220	U.S.A U.S.A
ISO400ACVE	ISO 400	Aluminum Aluminum	Viton Viton	AS-461 AS-461	394 15.512	400 15.748	12 0.472	5.6 0.220	Europe Europe
ISO500ACVA	ISO 500	Aluminum Aluminum	Viton Viton	AS-469 AS-469	494 19.449	500.2 19.693	12 0.472	5.6 0.220	U.S.A U.S.A
ISO500ACVE	ISO 500	Aluminum Aluminum	Viton Viton	AS-469 AS-469	494 19.449	501 19.724	12 0.472	5.6 0.220	Europe Europe

注意:
‧如無特別標示單位, 所有尺寸皆為公制 (mm).
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
