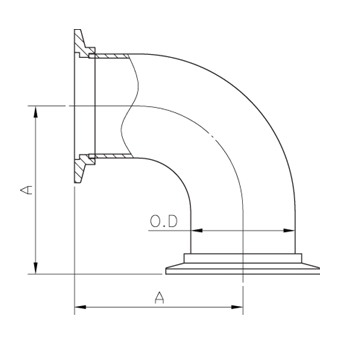

KF NW Flange 90° Elbows
KF NW 16-50 90° Elbows
KF NW 90° Elbows
KF NW 90° Elbows
‧材質： Stainless Steel / S.S.304
Part Number
Model Size
Flange O.D
Tube O.D
T
A
我要詢價
KF16E90A
KF NW 16
30
1.181
19.05
0.75
1.65
0.065
38.3
1.508
KF25E90A
KF NW 25
40
1.575
25.4
1.00
1.65
0.065
56.2
2.213
KF40E90A
KF NW 40
55
2.165
38.1
1.50
1.65
0.065
78.4
3.087
KF50E90A
KF NW 50
75
2.953
50.8
2.00
1.65
0.065
107
4.213
注意:
‧如無特別標示單位, 所有尺寸皆為
公制 (mm)
.
‧FVAC 保留修改產品設計與規範之權利來提升產品品質.
